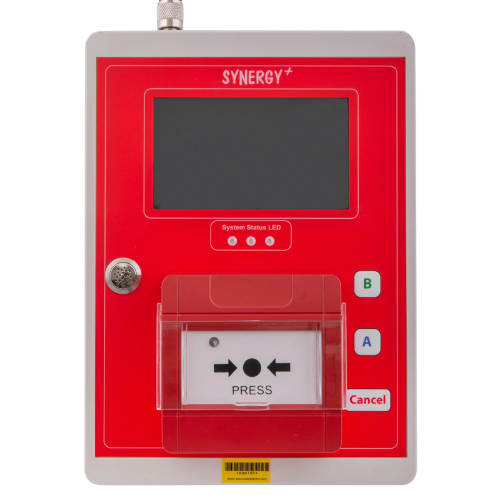

Evacuator Synergy+ Wireless Site Alarm Base Station with Call Point
Synergy+ Base Station – Centralized Monitoring & Control for Wireless Site Alarm Systems
The Synergy+ Base Station is designed for easy monitoring, testing, and maintenance of large-scale site alarm systems, making it ideal for site management and security offices. Featuring a full-colour touchscreen display, the Base Station provides a clear overview of system status while enabling advanced functionality such as First Aid alerts and GSM Gateway integration.
While a Synergy+ site alarm system can operate without a Base Station, it is required for:
First Aid notifications
GSM Gateway functionality
Grouping devices into Zones for organized monitoring
Key Features:
Full-colour touchscreen display – Provides an intuitive interface for system setup and real-time monitoring
Front-facing manual call point – Includes a hinged cover for protection
Allows all linked devices to be tested from a single location – Reduces system maintenance time
Mains powered via included 4.5V adapter – Ensures continuous operation
Real-time RF connectivity and low battery warnings – Ensures system reliability
Wirelessly interlinks with up to 250 other Synergy+ devices, creating a fully integrated network
Mesh network connectivity – All in-range units communicate with each other, eliminating single points of failure
Monitor, test, and reset all units from one location – Enhances system-wide safety management
Category One radio module using 869MHz – Stable, long-range signal transmission
Radio frequency range: 2000m line-of-sight – Extensive coverage for large sites
Integrated 85dB buzzer – Alerts users when any device in the system is activated
Indoor use only – Ideal for site offices, control rooms, and security hubs
Compact dimensions: 225 x 166 x 75mm
Certified compliance: CE, UKCA, RoHS, and EMC approved
Important Compatibility Information:
Synergy+ range (red) is NOT compatible with the previous Synergy RF range (white).
Base Station units are NOT required for interlinking Call Points, Smoke & Heat Detectors, and Sounder/Strobe units, but they provide enhanced system monitoring, maintenance, and testing functionality.
Base Stations are required for First Aid notifications and GSM Gateway functionality.
Installation Service Available
A professional installation service is available for seamless setup and integration into existing safety systems.
The Synergy+ Base Station is an essential addition for larger, complex site alarm networks, providing centralized control, improved safety management, and real-time monitoring to enhance workplace emergency preparedness.
